Engineering Design Services

• Fully detailed design 3D CAD models, parts and assemblies.
• Simulation Analysis - Shock, Vibration, Linear Dynamic.
• Complete 2D drawing packages for manufacturing and assembly.
• Existing non 3D CAD libraries conversion into 3D.
• Revision management control - ECR/ECO to ensure design changes are recorded correctly for existing and future builds.
• Design for manufacturing.
• Product design.
• Reverse engineering.
• Aftermarket operator and maintenance handbooks with 3D images.

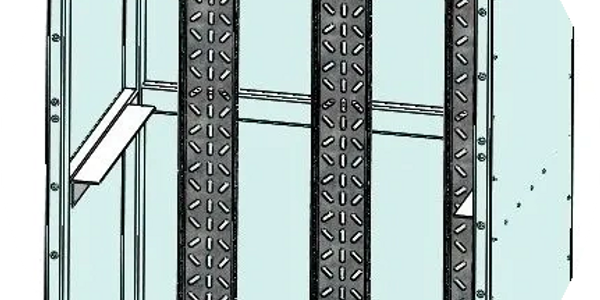

3D Computer Aided Design is an essential and effective part of our product design and development process. It enables us to transform formative conceptual ideas into fully finished manufacturable products.

Our 3D CAD models help visualise your project requirements and provides the precise information required for the viable manufacturing of your product.

 Simulation analysis has huge potential cost saving benefits, it allows to check the design is fit for purposes before any materials are bought and before any manufacturing begins. We can provide simulation analysis and report writing to support any of your current projects or to accompany a new project.

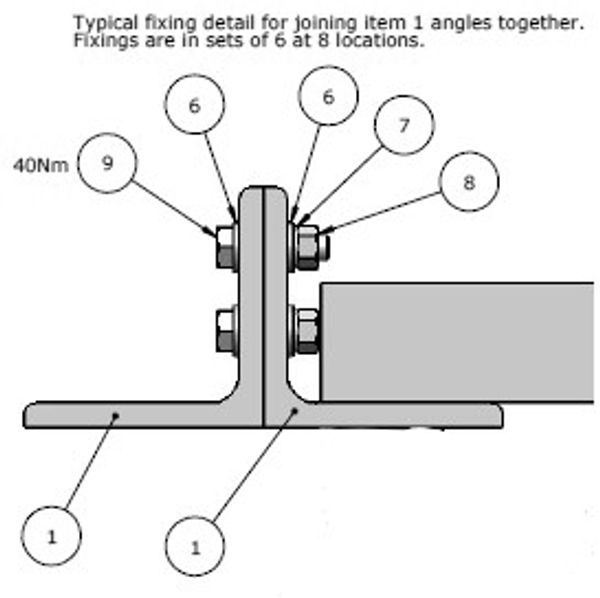

Utilising 3D images and CAD models, we can provide handbooks for operational, maintenance and instructional purposes.

These could just be simple instruction handbooks to more inclusive operational, procedural and maintenance handbooks.

We can also provide parts catalogues for your existing projects to aid your customers with aftermarket support and part replacement.
